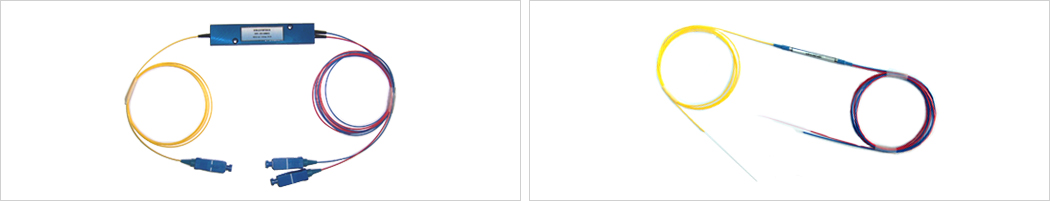

WDM

WDM

01. Application

  • CATV
  • Telecommunication
  • FTTH
  • Local Area Networks
  • Test equipment

02. Features & Benefits

  • Low insertion & excess loss
  • High directivity
  • Low PDL
  • Environmentally stable and reilability

03. Secitication

Secitication
Type SMFOC 0102 SMFOC 0104 SMFOC 0108
Configuration 1x2 1x4 1x8
Wavelength (㎚) 1,310 or 1,550 (±10㎚: Std., ±40㎚: Wide)
Typical excess loss (㏈) 0.07 0.3 0.5
Max, Insertion loss (㏈) 3.4 6.8 10
Uniformity (㏈) ≤0.6 ≤0.8 ≤1.2
Directivity (㏈) >55
Dimension (㎜) 85x17.5x7.5 36x96x9.6 100x80x7.5

04. Ordering Information

Ordering Information
Fiber Type Configuration Wave Legnth Coupling Ration Cord Dia (㎜) Cord Length
SM: 9/125 0102: 1x2 A: 1,310㎚ U: Uniform output 09:00.9 1~99M
MM: 50/125 0104: 1x4 B: 1,550㎚ S: Specified from customer 30:03.0
HMM: 62.5/125 0108: 1x8 C: 1,310㎚& 1,550㎚
Ordering Information
Package Connector Type/End Shape (A&B) Grade Bandwidth XXX-Type
C: Cylinder S: SC, F: FC S: SPC P: Premium S: Standard FBT
A: Aluminum case T: ST, L: LC U: UPC S: Standard W: Wide PLC
  M: MU, N: None A: APC E: Economic
