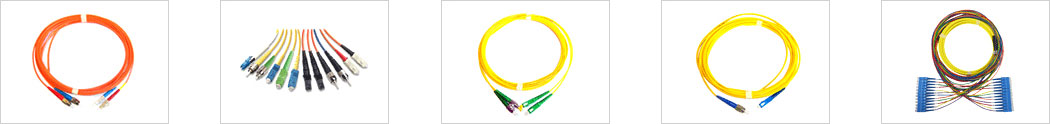

±¤Á¡ÆÛÄÚµå

±¤Á¡ÆÛÄÚµå

Äڵ屸Á¶º° Ư¡

¼ö½Ê¾ïÀÇ ¼­¹öµé°ú ¼öõ¾ïÀÇ ÀáÀçÀû °¡Ä¡¸¦ °¡Áø ³×Æ®¿÷¸Áµµ ÇÑ°¡´ÚÀÇ Á¡ÆÛÄڵ尡 »ý»ç¸¦ Áã°í Àֱ⿡ Àåºñ°¡ °í±ÞÀϼö·Ï ³×Æ®¿÷¸ÁÀÌ Áß¿äÇÒ¼ö·Ï ÄÚµåÀÇ Ç°ÁúÀÌ °¡Àå Áß¿äÇÏ´Ù°í ÇÒ ¼ö ÀÖ½À´Ï´Ù.
ÁÖ¿ä ÀåºñÀϼö·Ï ¿Ö °í±ÞÇüÀΰ¡ Àú¼Õ½ÇÀΰ¡ÀÇ ÀÌÀ¯°¡ ¿©±â¿¡ ÀÖ½À´Ï´Ù.

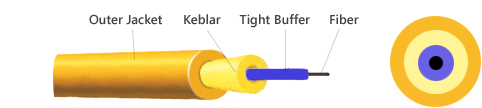

Äڵ屸Á¶º° Ư¡
Division Fiber Tight Buffer Outer Jacket Color Insertion Loss
Standard SMF 28 PVC PVC Orenge, Yellow 0.97-1.69§¼
Premier SMF 28 PVC LSZH 7 Color -
Low Loss e-Z Band Free Nylon LSZH 7 Color 0.32-0.56

01. Application

  • Telecommunication Networks
  • Lcal Area Netowrks
  • Data System Networks
  • CATV Networks
  • Active Device Termination

02. Features

  • Comply with : JIS C-5973, IEC, Bellcore
  • High stable mating and de-mating
  • Low insertion loss and high return loss
  • Designed for bariable cable
  • Customaized addembly
  • Various connector and optical
  • Combination

03. Secitication

Secitication
Characteristics Values
Structure Satisfied Telcordia GR-326-CORE
Fiber Type SM (9/125), MM (50/125, 62.5/125)
Insertion Loss SC,FC,ST,LC SM ¡Â0.3§¼
MM ¡Â0.4§¼
MTRJ SM ¡Â0.3§¼
MM ¡Â0.4§¼
Return Loss SPC ¡Ã40§¼
UPC ¡Ã50§¼
APC ¡Ã60§¼
MM ¡Â0.2§¼ (500 times)
Operation temperature stability ¡Â0.3§¼ (-40¡É~+85¡É)

04. Ordering Information

Ordering Information
Fiber Length (M) Connector Type/End Shape Cord Dia (mm) Boot Color Cord X XX
Housing Color Width of Key(§®)
SM: 9/125   S: SC P: PC 09:00.9 B: Blue S: Simplex B: Blue (SM-PC) N: 2.09~2.14
MM: 50/125   F: FC S: SPC 16:01.6 K: Black D: Duplex G: Green (APC) R: 1.97~2.02
HMM: 62.5/125   T: ST U: UPC 20:02.0 G: Green DR: Round R: Gray (MM-PC) * Only FC Type
    L: LC A: APC 24:02.4 Y: Yellow DZ: Duplex * Only SC, LC Type
    M: MU   30:03.0 R: Red DZ: Zipcord
    R: MT-RJ     W: White Q: Quad
          O: Option Q: Zipcord
