COUPLER

COUPLER

01. Application

  • Telecommunication
  • Local Area Networks
  • IMT-2000
  • Test Equipment
  • FTTH
  • CATV
  • Configuration 1 x 2

02. Features & Benefits

  • Low Excess Loss & insertion loss
  • Good Uniformity
  • Coupling Ratio of 50/50 or as customer
  • Optional Pre-connectiorized outputs
  • Wide wavelength range

03. Secitication

Secitication
Type SMFOC 0102 SMFOC 0104 SMFOC 0108
Configuration 1x2 1x4 1x8
Wavelength (§¬) 1,310 or 1,550 (¡¾10§¬: Std., ¡¾40§¬: Wide)
Typical excess loss (§¼) 0.07 0.3 0.5
Max, Insertion loss (§¼) 3.4 6.8 10
Uniformity (§¼) ¡Â0.6 ¡Â0.8 ¡Â1.2
Directivity (§¼) >55
Dimension (§®) 85x17.5x7.5 36x96x9.6 100x80x7.5

04. Ordering Information

Ordering Information
Fiber Type Configuration Wave Legnth Coupling Ration Cord Dia (§®) Cord Length
SM: 9/125 0102: 1x2 A: 1,310§¬ U: Uniform output 09:00.9 1~99M
MM: 50/125 0104: 1x4 B: 1,550§¬ S: Specified from customer 30:03.0
HMM: 62.5/125 0108: 1x8 C: 1,310§¬& 1,550§¬
Ordering Information
Package Connector Type/End Shape (A&B) Grade Bandwidth XXX-Type

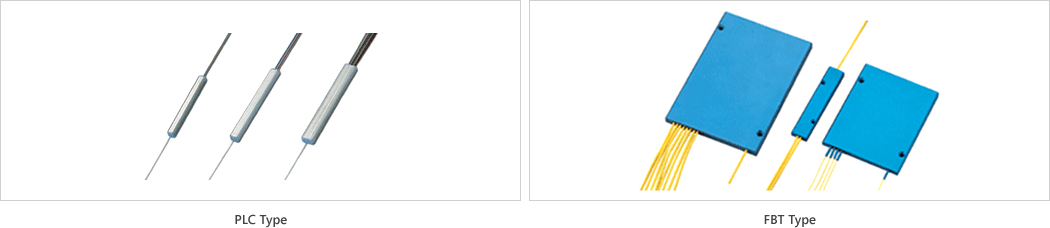

C: Cylinder S: SC, F: FC S: SPC P: Premium S: Standard FBT
A: Aluminum case T: ST, L: LC U: UPC S: Standard W: Wide PLC
  M: MU, N: None A: APC E: Economic
