광감쇠기

광감쇠기

01. Application

  • Telecommunication
  • CATV Networks
  • Data Communication
  • Instrumentation
  • Local Area Network

02. Features & Benefits

  • Optimized iron doped fiber technology
  • Various Fixed attenuation available
  • Superior durability
  • Low polarization dependence
  • Superior spectral flatness and very low ripples
  • Withstands high optical power up to 1W
  • Telecordia std(GR-910-CORE) conformed

03. Secitication

Secitication
Characteristics Single Mode (9/125㎛) Multi Mode (G1 50/125㎛, 62.5/125㎛)
Attenuation Value 0㏈ to 20㏈ (1㏈ step), 25㏈, 30㏈ 0㏈ to 25㏈ (1㏈ Step)
Operating wavelength 60,000 1,260㎚~1,620㎚ 850㎚ or 1,300㎚, 1,310㎚
Return loss SPC ≥40㏈ -
UPC ≥55㏈
APC ≥65㏈
Attenuation Tolerance 1㏈~10㏈ ±0.5㏈ ±0.5㏈
10㏈~15㏈ ±1.0㏈
16㏈~30㏈ ±2.0㏈
Maximum Power Capability 1W
Operating temperature -40℃~+75℃

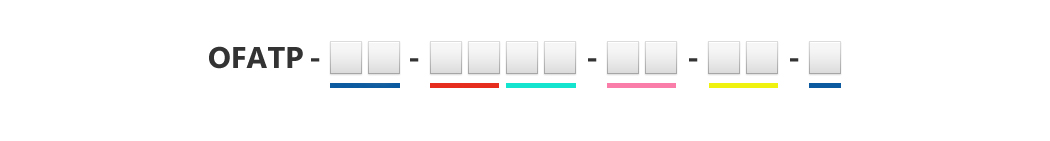

04. Ordering Information

Secitication
Fiber Type Type Connection Attenuation Wave length Sleeve
End Shape Value
SM: 9/125 SCP*Dicasting Housing SP: SPC 01: 1㏈ 85: 850㎚ C: Ceramic
MM: 50/125 SCP*Plastic Housing UP: UPC 02: 2㏈ 30: 1,300㎚ B: Bronze
HMM: 62.5/125 FC AP: APC - 13: 1,310㎚
  ST   20: 20㏈ 15: 1,550㎚
  LC   25: 25㏈ 35: 1,310㎚
  MU   30: 30㏈ & 1,550㎚
