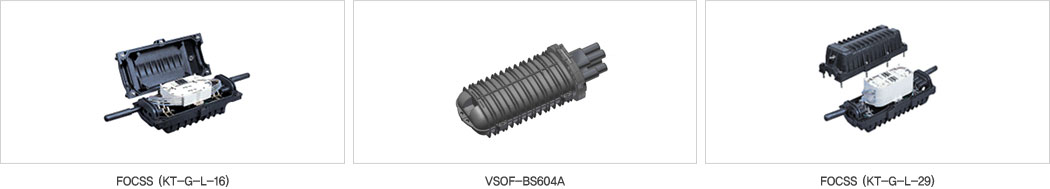

광접속함체

광접속함체

01. Application

  • Telecommunication Networks
  • CATV Networks
  • Local Area Networks
  • Underground, Aerial, Buried
  • Vault and Building environments

02. Features & Benefits

  • Closure provides perfect solution for the protection of the junction point of optical fiber cable from environment.
  • Silicone gasket is used to seal closure and provide a long term reliability.
  • Closures have two or three cable entrance ports on each end.
  • Closures can be installed at temperatures between -40℉~176℉ (-40℃~80℃)
  • Closures are compact and lightweight.
  • Its installation is very easy due to applied minimum bolts.

03. Secitication

Secitication
Items Model Core Spec Dimension (㎜) Weight with box
W D H
FOCSS 3-3 ports Min.Φ8~max.Φ19 187 325 130 3.9㎏
FOCS 2-2 ports Min.Φ8~max.Φ29 187 450 130 5.0㎏
2-3 ports Min.Φ8~max.Φ29
3-3 ports Min.Φ8~max.Φ24
FOCM 2-2 ports Min.Φ8~max.Φ29 187 450 166 5.7㎏
2-3 ports Min.Φ8~max.Φ29
3-3 ports Min.Φ8~max.Φ24

04. Ordering Information

Ordering Information
Model Port Fiber Count Option
SS: Super Small 2:2 Ports 1C~144C SB: Support Bracket
S: Small 2:3 Ports R2~R320 N: None
M: Medium 3:3 Ports
